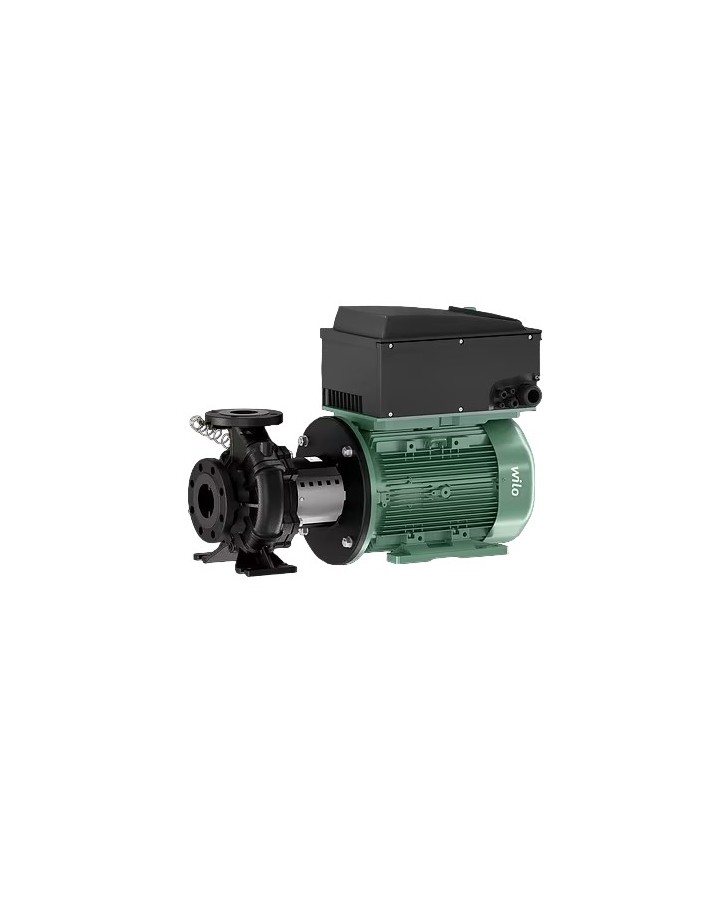

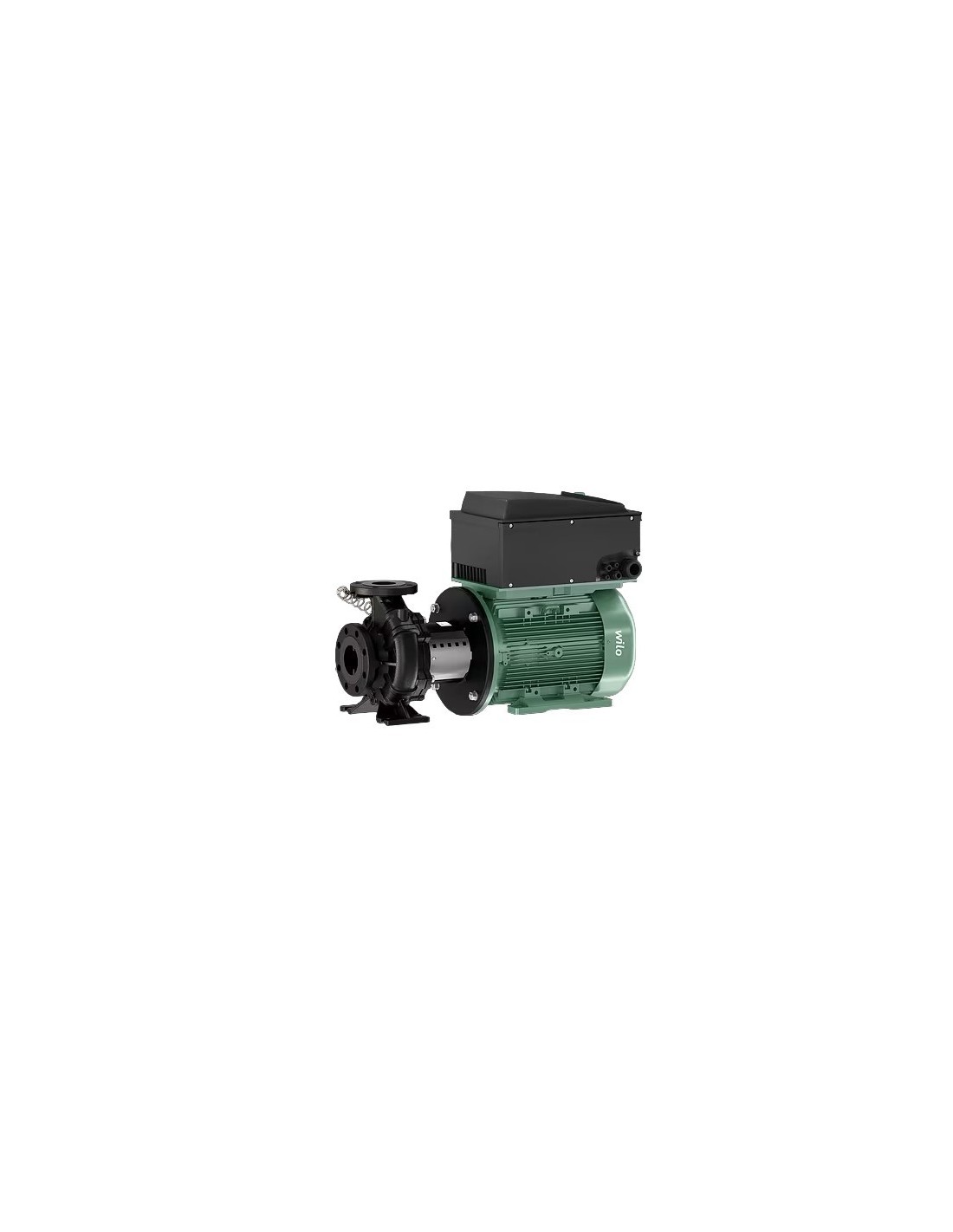

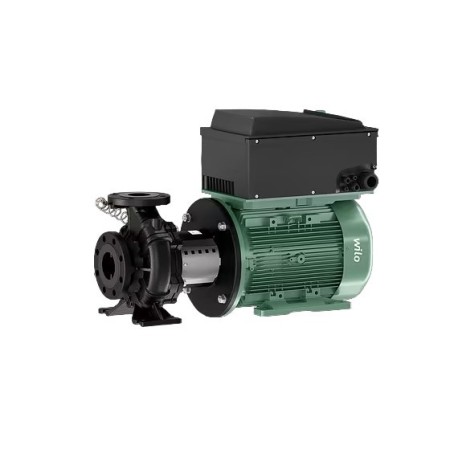

Wilo CRONOBLOC BL-E 32/115-3/2 monobloc pump

Construction type

Electronically regulated ventilated motor monobloc single pump with flange fitting and automatic performance adaptation.

Application

Pumping of heating water (according to VDI 2035), cold water and abrasive-free water/glycol mixtures in heating, air conditioning and refrigeration systems

Equipment/Operation

Modes of operation

         ·Δp-c for constant differential pressure

         ·Δp-v for variable differential pressure

         ·PID-Control

         ·Operation as a servo motor (n = constant)

Command Level

         ·Green button and display

Manual functions

         ·Setting the differential pressure delivery value

         ·Setting the rotation speed (manual selection mode)

         ·Setting the Operating Mode

         ·Pump on/off setting

         ·Configuration of all operating parameters

         ·Confirm errors

External control functions

         ·Control input "Priority Off"

         ·0-10 V, 0-20 mA analog input for servo motor operation (DDC) and remote control of the delivery value

         ·2-10 V, 4-20 mA analog input for servo motor operation (DDC) and remote control of the delivery value

         ·0-10 V analog input for pressure sensor true value signal

         ·2-10 V, 0-20 mA, 4-20 mA analog input for pressure sensor true value signal

Signaling and display functions

         ·SSM cumulative fault reporting

         ·Cumulative SBM Operation Signaling

Data exchange

         ·Infrared communication port for wireless data exchange with IR monitor/IR stick

         ·Plug-in compartment for Wilo IF modules (Modbus, BACnet, CAN, PLR, LON) for connection to the building automation system

         ·Interface for communication of the two pumps

Safety features

         ·Integral motor protection with integrated trip electronics

         ·Access Lock

Double pump management (2 x single pumps, only for use with Y-connector)

         ·Main/backup operation (automatic pump exchange for block)

         ·Main/backup operation pump exchange after 24 hours

         ·Parallel operation

         ·Parallel operation (switching on and off peak load optimized for best performance)

Key to reading

Technical data

         ·Permissible temperature range from -20 °C to +140 °C

         ·Minimum Efficiency Index (MEI) ≥ 0.4

         ·Mechanical seal for pumping water up to Tmax. = +140 °C. For temperatures up to T ≤ +40 °C, the addition of 20 % – 40 % volume of glycol is permitted. An alternative mechanical seal must be provided with water/glycol mixtures with glycol parts > 40% up to max. 50% by volume and a medium temperature > +40 °C to max. +120 °C or with media other than water. When using water/glycol mixtures, it is generally recommended to use an S1 variant with a corresponding mechanical seal.

         ·Mains power supply

or    3~440 V -5 % +10 %, 50/60 Hz

or    3~400 V ±10 %, 50/60 Hz

or    3~380 V -5 % +10 %, 50/60 Hz

         ·Compliance with electromagnetic compatibility without additional measures:

or    Electromagnetic interference emission for residential environments according to EN 61800-3:2018

or    Interference immunity for industrial environments according to EN 61800-3:2018

         ·IP55 rating

         ·Nominal diameter DN 32 - DN 150

         ·Max. operating pressure 16 bar up to +120 °C, 13 bar up to +140 °C

Materials

         ·Pump body and lantern: Standard: EN-GJL-250

         ·Impeller: Standard: EN-GJL-200; optional: CuSn 10 bronze, stainless steel 1.4408

         ·Tree: 1.4122

         ·Mechanical seal: AQEGG, other mechanical seals on request

Construction

Single-stage low-head centrifugal pump in monobloc construction with axial suction port and radially arranged delivery port with

         ·Mechanical seal

         ·flange fitting with connection for measuring pressure R ¹/8

         ·Lantern

         ·Joint

         ·Thruster with integrated electronic rotation speed control

Supply

         ·Pump

         ·Assembly, use and maintenance instructions

Options

         ·Variant ...-R1 without differential pressure transducer

         ·Variant ...-L1 with bronze impeller (for an extra charge)

         ·Variant ...-L4 with stainless steel impeller (for an extra charge)

Fixings

         ·Support base for base mounting

         ·IR Monitor, IR Pen

         ·PLR IF module for connection to PLR/communication port converter

         ·LON IF module for connection to the LONWORKS network

         ·BACnet IF Form

         ·Modbus IF module

         ·IF CAN module

         ·VR-HVAC control system

         ·CCe-HVAC control system

         ·SCe-HVAC control system

         ·Differential Pressure Transducer (DDG)
