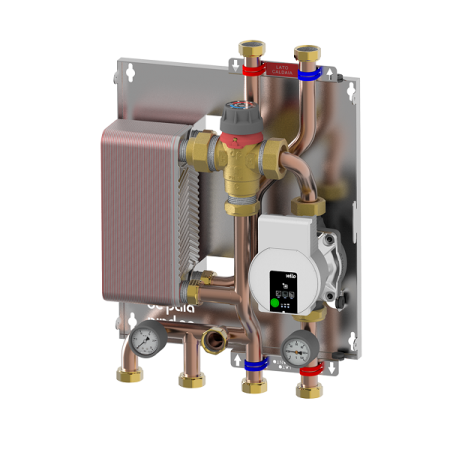

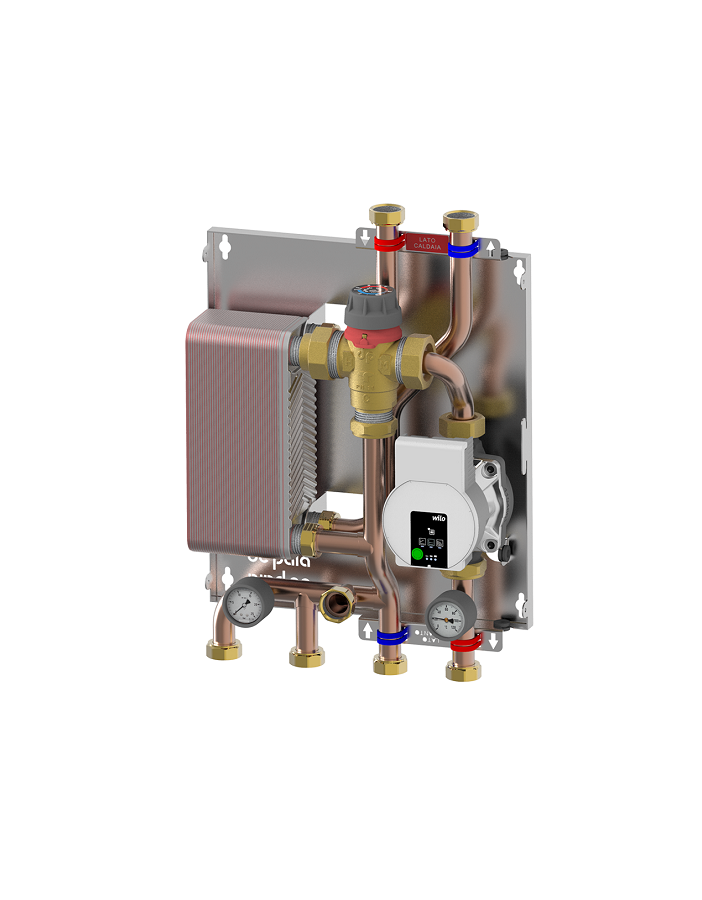

Separation unit: heat generator/heating system with mixed delivery only fixed p.kw 35

SEPMIX4
€1,130.94
€723.80 Save 36%
Tax included
Last items in stock

Description

Module dedicated to the separation of the fluid of the primary circuit (heat generator) from that of the secondary circuit (low temperature heating system) by means of a brazed plate heat exchanger and booster pump.

The SEPMIX separation module is equipped with connections for the hydraulic loading and unloading of the heating system circuit, De Pala Easy Mix thermostatic valve with adjustable fixed point, connection for safety valve and expansion tank (by the installer), system delivery thermometer and pressure gauge.



Technical Data

Nominal pressure: 6 bar

Fluid operating temperature: 15° - 85°C

Fluid: Clean water (no solids/abrasives)

Connections designed for loading/unloading



Materials:

Fixing plate: 12/10 galvanized steel

Pipes: copper

Thermostatic Valve: brass

Gaskets: EPDM

Seals: PTFE

Brazed plate heat exchanger: AISI 316 stainless steel



SEPMIX4
