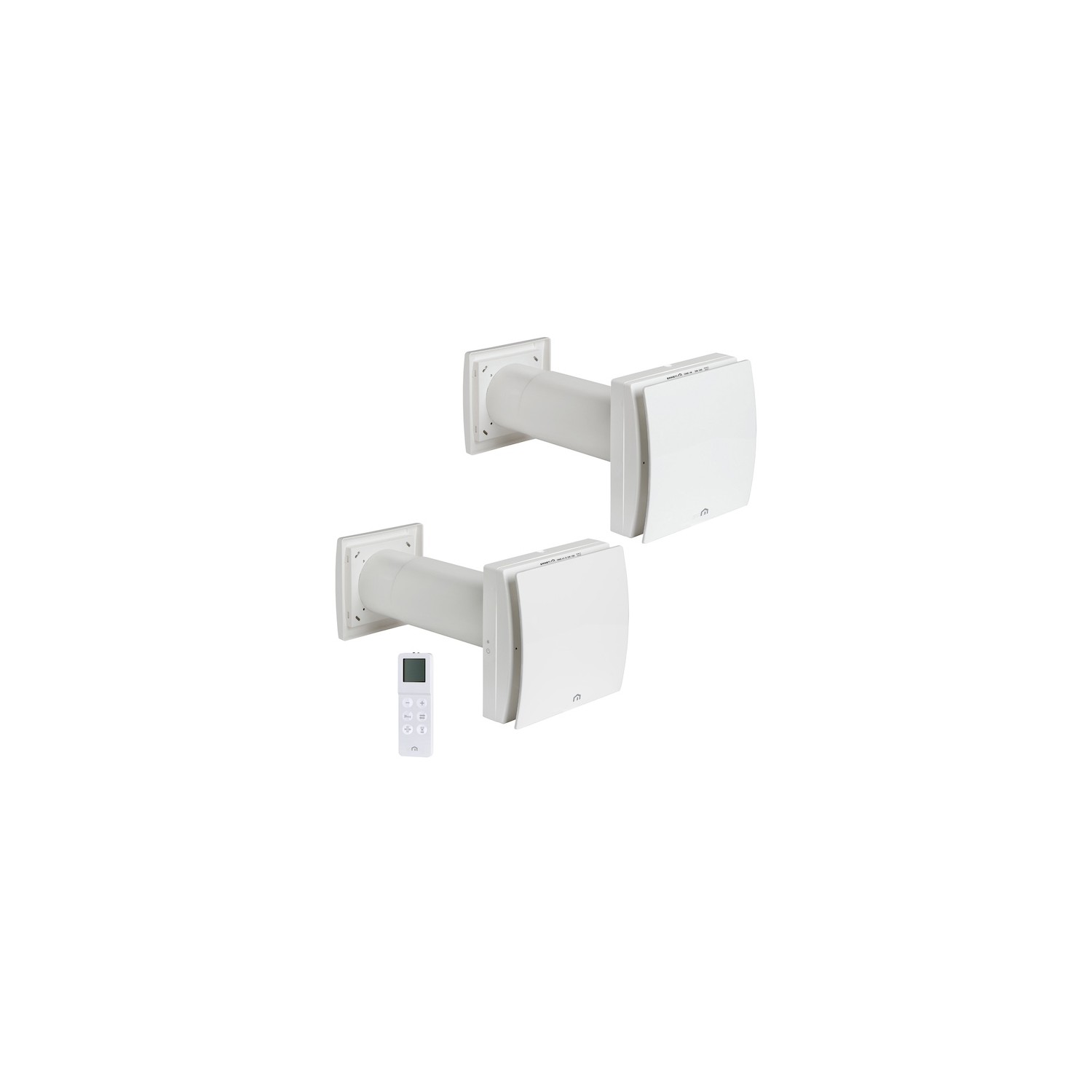

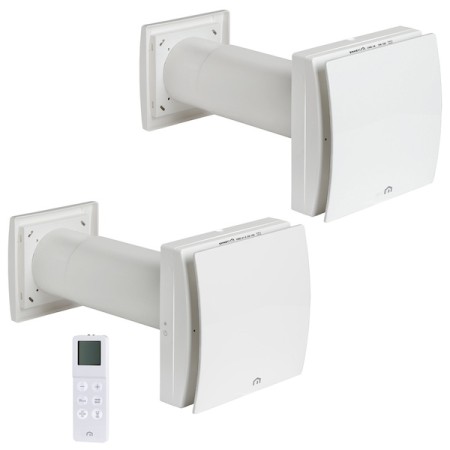

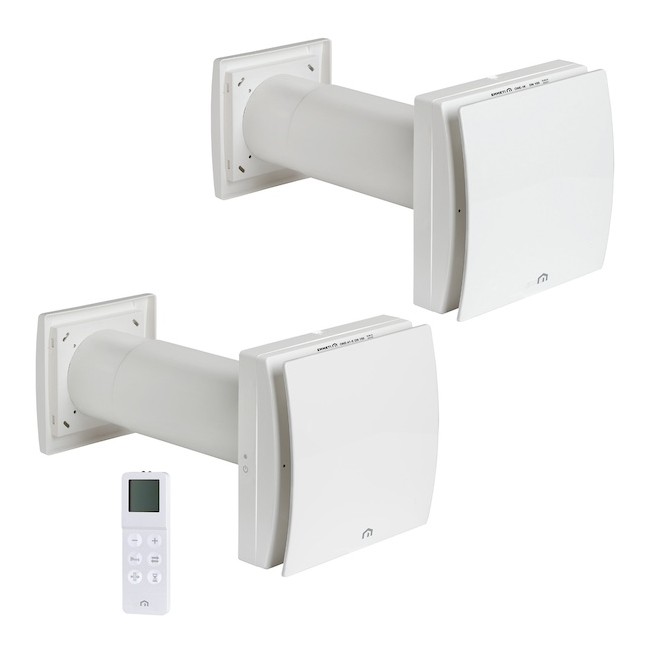

Emmeti ONE 41S heat recovery ventilation unit DN160 with remote control

Decentralized single-flow alternating VMC unit with heat recovery, very low energy consumption, for wall installation (horizontal arrangement).

Ideal system for installation in single rooms such as living rooms and bedrooms: for better flow balancing it is generally used in pairs with another unit, with synchronized flows between them.

Ideal for ensuring the removal of CO2, indoor pollutants and preventing condensation and mold problems, which inevitably damage the structure and compromise the health of occupants.

Features:

• Internal fan unit and support base made of high-quality, impact- and UV-resistant ABS, color RAL9010
• Aerodynamic, high-efficiency fan with "winglet" blades, i.e., prov- ed with end fins to optimize quietness and efficiency
• Ultra-low power consumption brushless EC motor equipped with thermal protec- tion and mounted on ball bearings that provide the product with longer life and make it suitable for cold climates.
• Designed for reversible and continuous operation
• Regenerative heat exchanger with ceramic pack, with very high thermal efficiency
• Washable dust filter
• Telescopic tube adaptable to perimeter wall thickness
• External terminal equipped with anti-insect net
• Front cover easily removable for cleaning, without the use of tool
• Double insulation:
• does not require grounding for maximum electrical safety of the user
• Fully recyclable plastic
• Does not require condensate drain
• Designed and built in accordance with EN60335-2-80 (Low Voltage Directive) and EMC (Electromagnetic Compatibility) Directive

Features available on ONE-16S and ONE-41S models:

• Automatic flow reversal time management (comfort mode) for maximum acoustic and thermal comfort
• Free cooling:
• option of extract-only or supply-only operation to avoid heat recovery when not required
• Built-in multi-color LED for visual feedback of unit status
• Simplified synchronization between multiple units (up to 10), which is automatically established when they are connected to each other, thanks to a dedicated communication protocol
• On-board back-up touch button
• Built-in smart humidity control
• Extremely easy maintenance,
• executable by the end user in maximum safety, thanks to the possibility of removing the indoor fan unit by means of a magnetic coupling/uncoupling system
• Automatic frost protection to prevent the formation of ice on the exchanger
• The following functions can be selected using the supplied multi-function remote control: air flow direction (alternating flow, extract only, supply only); free-cooling; OFF position; speed (I-II-III-IV-V); comfort or efficiency mode; boost speed; filter reset

Technical data:

• Power supply: 230 Vac, 50 Hz
• Degree of protection: IPX4
• Operating environment temperature: -20 to 50 °C
• Internal terminal dimensions LxHxP: 218x218x77.5 mm
• Weight: 4.3 kg
