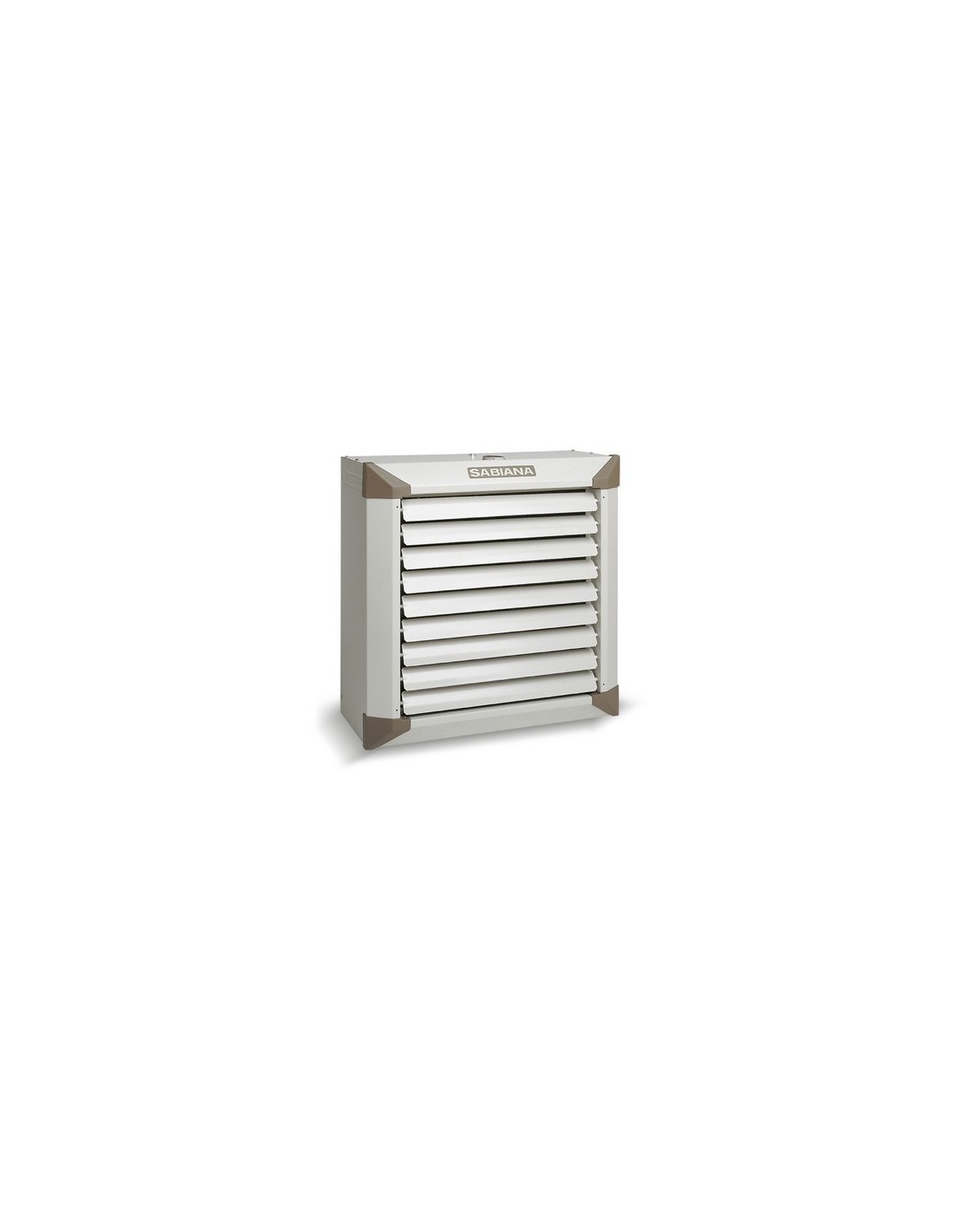

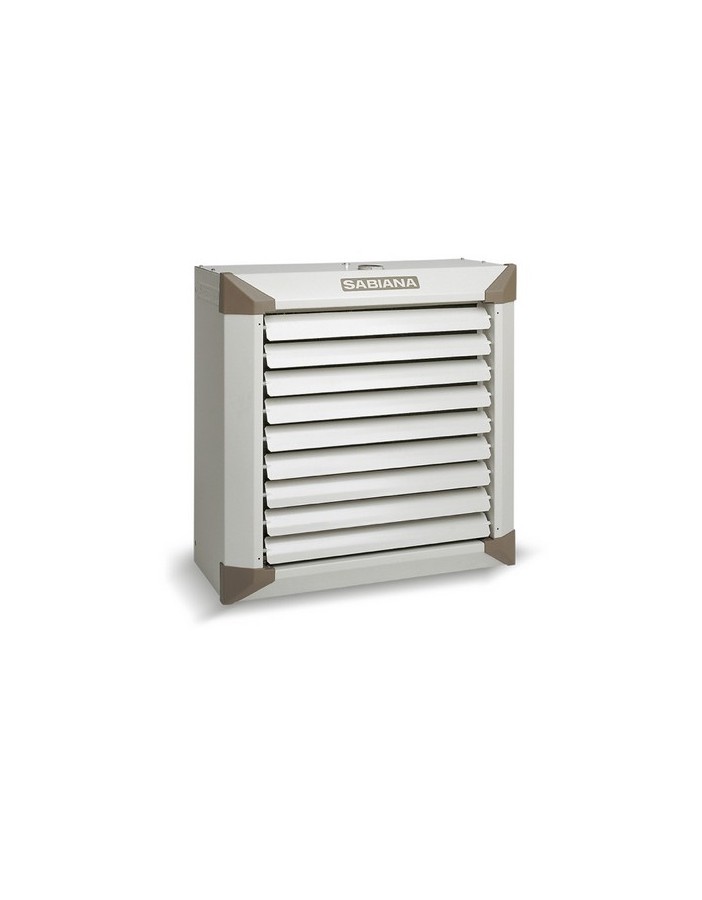

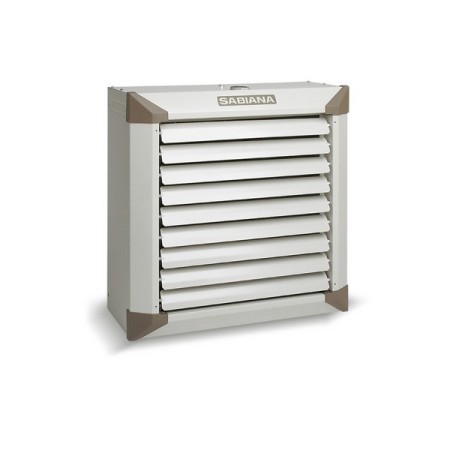

Sabiana Atlas AT-ECM 33 SP air heater 3 rows G3

Atlas unit heaters have a big heart: a battery conceived, designed and built specifically for heating industrial environments. The high thickness of the pipes, made of steel as standard, their large diameter (ø 22 mm) and the optimal ratio between the air flow rate and the thermal output guarantee a long life and high environmental comfort. Atlas unit heaters are produced in 10 sizes with heat outputs from 5 to 120 kW and are available with 1-row coil for steam or superheated water systems, 2-row coil for hot water systems and 3-row coil for low-temperature hot water systems. They can be installed on the wall and ceiling.

Atlas unit heaters comply with the new European Regulation (EU) nr. 327/2011 which imposes particularly low electricity consumption in relation to the aeraulic performance provided. The regulation has been in force since January 2013.

A wide range of accessories such as additional ducts for external air intake and recirculation, flanges, motors with IP 55 protection, explosion-proof motors, multifunctional controls with room thermostat, non-standard executions (special voltages, special ducts) allows you to always choose the most suitable solution.
