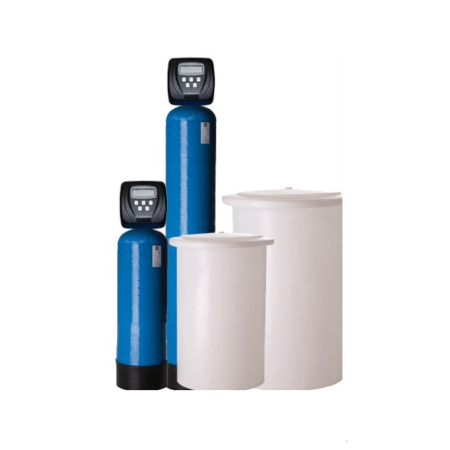

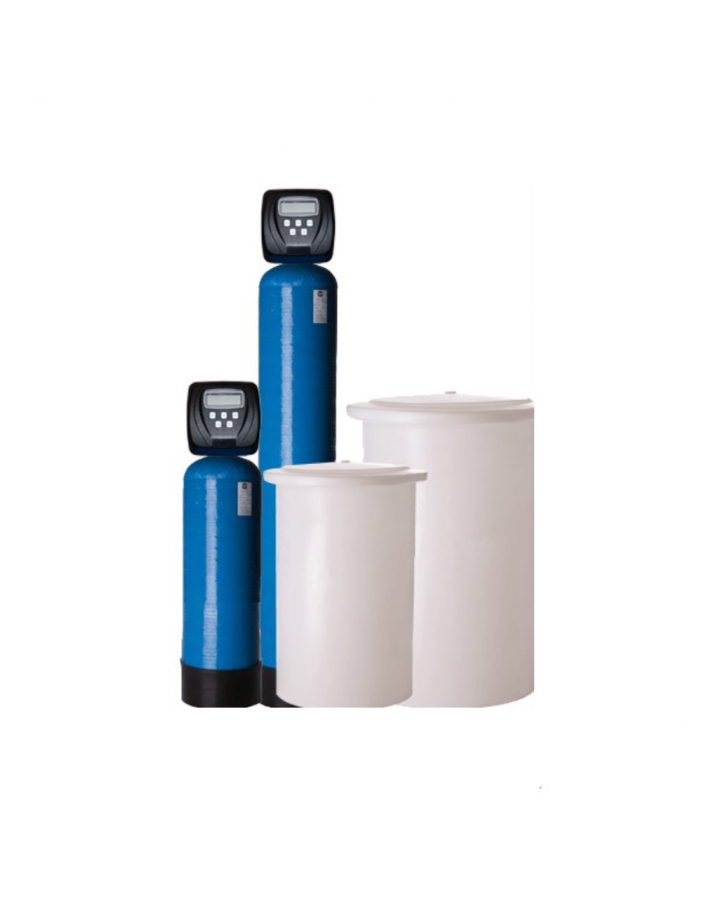

Clack WS1CI 1" electronic double body water softener (Rig. Volume-time) 40lt. resin

Clack WS1CI 1" automatic electronic valve Volume/time regeneration. Low water and salt consumption for each regeneration. Valve body made of Noryl plastic, NSF listed. Simple programming, time entry, day of the week entry, regeneration time, usually 02.00 at night, number of days between regenerations and incoming hardness. Complete with 12/230V – 50Hz power supply socket, European plug. Output hardness adjuster. An output hardness of around 15°F is recommended, however the most frequently used setting is not less than 5°F. Loosening the adjusting screw will reduce mixing with raw water at the outlet. To mix a specific output hardness value, adjust the screw and test the water. Repeat the procedure until the desired hardness value is reached. To check the hardness at the inlet/outlet of the device, we recommend purchasing code 13000001 Titrant Total Hardness Kit (1°F) single reagent 15cc.

The device is supplied programmed with an inlet hardness of 40°F, an outlet hardness of 0°F, and a safety regeneration every 7 days. The bypass valve (if ordered) isolates the appliance from the water system to allow untreated water to be used. Routine maintenance or service may also require the system to be bypassed.

Features:
* Simple and intuitive programming
* Solid-state microprocessor with front panel settings.
* Large LCD display.
* 48 hours internal power backup.
* Real time of the day expressed in hours and minutes.
* Residual volume of softened water.
* Display of regeneration phases and remaining cycle time.
* Fast and easy configuration of capacity, time and day of regeneration.
* The set schedule remains in memory and will not be lost in the event of a power failure.
* Step-by-step electronic regeneration.
* Manual, delayed or immediate regeneration.
* Lack of salt alarm.

Features
* Min. pressure: 1.4bar (1.4kg/cm2)
* Max. pressure: 8.6bar (8.6kg/cm2)
* Min temperature: 4°C
* Max temperature: 43°C
* Water Inlet/Outlet 1" male thread
* Drain: hose connector with 2mt. Tube
* Overflow: 3/8" hose connector

Specifications of the model 15000203-40 40lt. resin.
* Interchange capacity: 200ºHFxm3.
* Salt consumption for regeneration: 5.20 Kg./salt.
* Water consumption for regeneration: 280lt.
* Amount of water treated for regeneration, 30°F-6.66m3, 35°F-5.71m3, 40°F-5.00m3, 45°F-4.44m3, 50°F-4.00m3, 60°F-3.33m3.
* Max. flow rate 1.56m3/h
