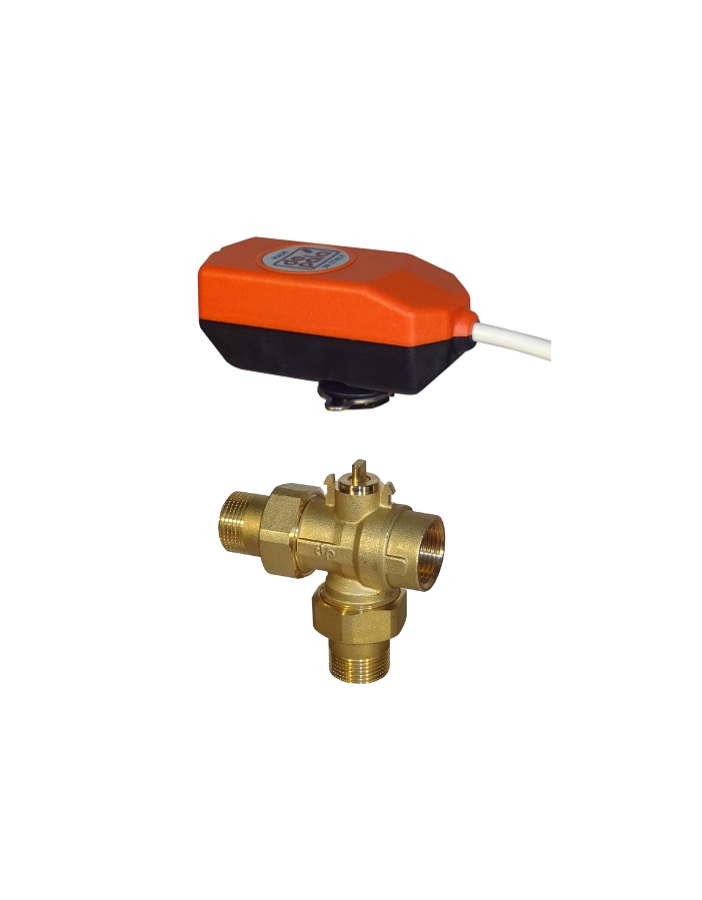

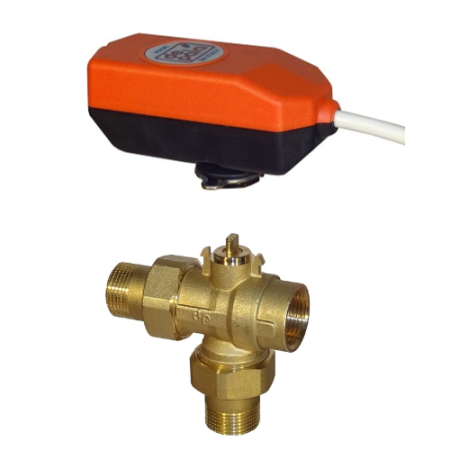

Fast valve 3-way side diverter d. 1/2" type all/nothing female connections/union w/motor 3 wires 1 auxiliary contact ap 12" 230vac

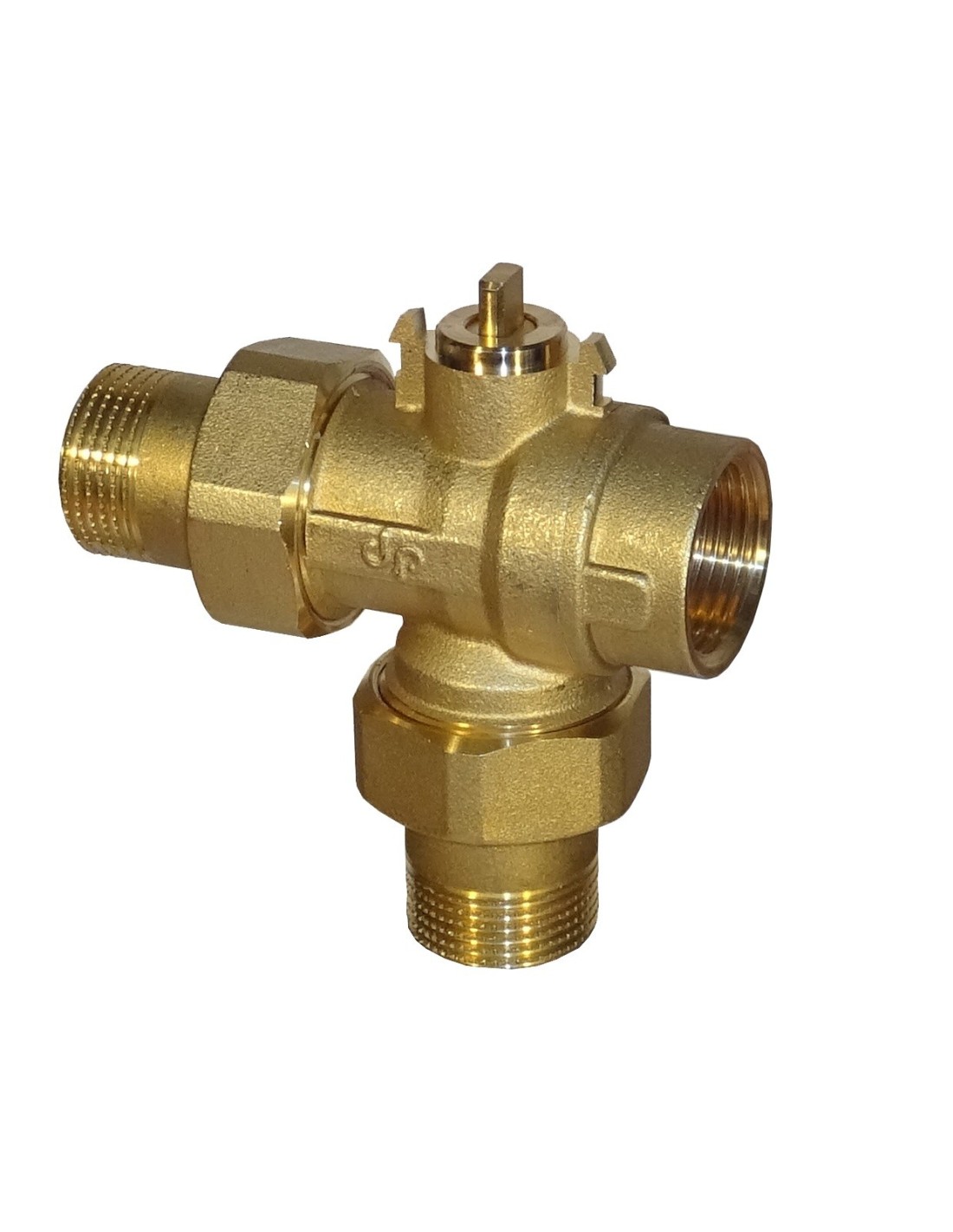

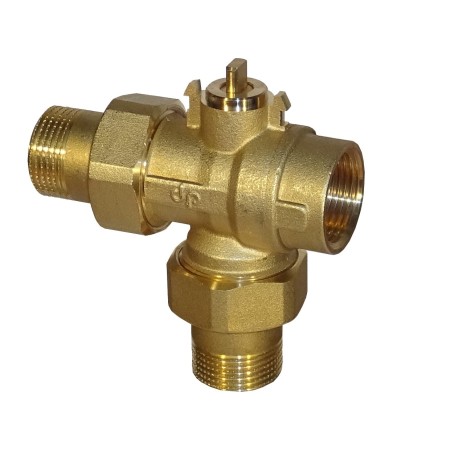

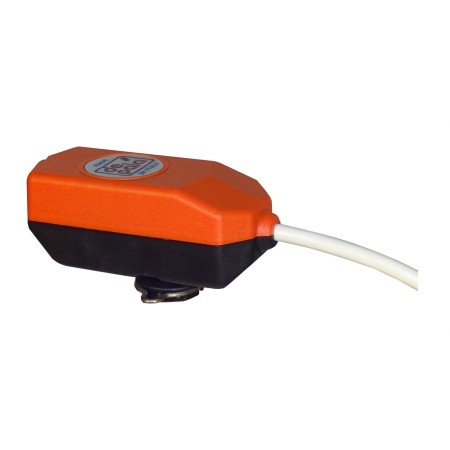

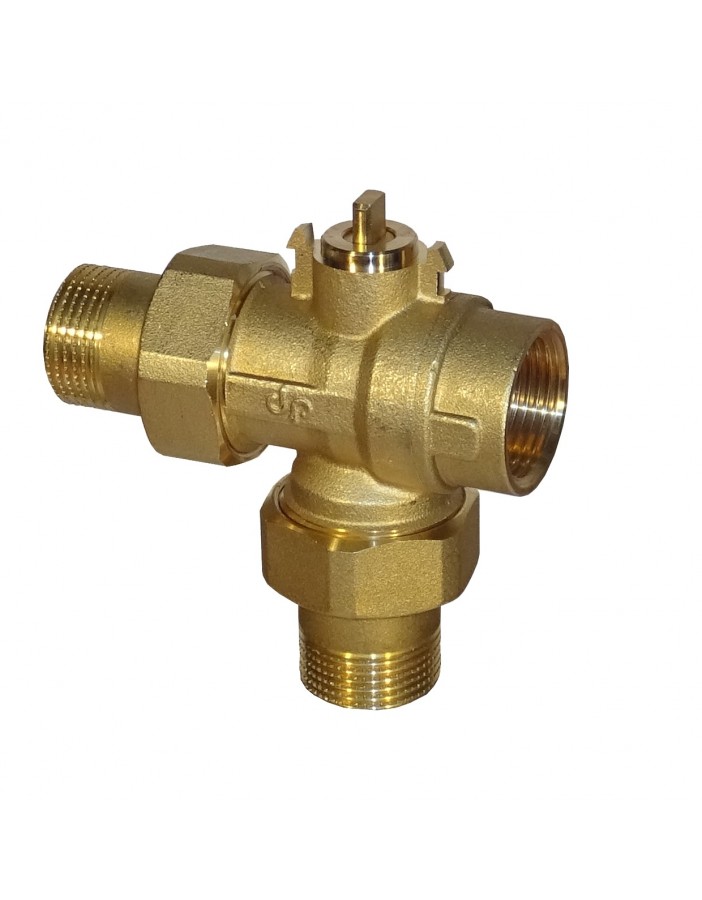

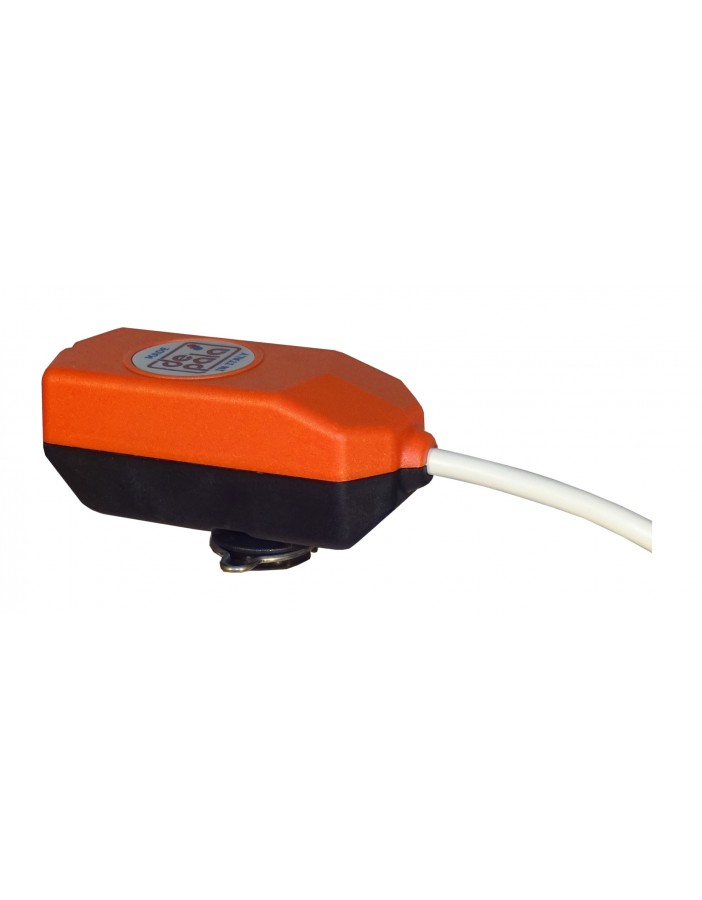

All the valves of the FAST line are characterized by extreme compactness, while guaranteeing a high flow rate. The small width of the servomotor allows the valve to be applied even in manifolds with a 50mm center distance. This guarantees an always careful design process, aimed at creating more effective products in line with the needs of installers, designers and builders. The thread of the FAST series motorized valves is made according to the ISO 228-1 standard (GAS Female or Male). They are therefore compatible with all hydraulic components, fittings and pipes with threads made according to regulations. The servomotors include a gearbox with heat-treated steel gears and are proposed with the intention of offering compatibility with all valves of the FAST series with a single product. VALVE BODIES: Valve body : brass CW617N ( UNI 12165 ) Ball : brass CW617N ( UNI 12165 ) Nickel-plated Ball seats : PTFE plus EPDM o-ring Rod : with double EPDM o-ring and PTFE anti-seize ring Maximum operating pressure : 10 bar Maximum differential pressure : Δp 4 bar Fluid operating temperature : 0 °C + 100 °C Usable fluid : Water, glycol water or liquids compatible with PTFE and EPDM seals Pressure drops : low Coupling : quick with ring spring COUPLED SERVOMOTORS: Opening/closing times : 12" Available voltages : 230Vac - 24Vac Auxiliary contacts : 1 (dry contact) Degree of electrical protection : IP54 Control type : 2-wire (internal relay) / 3-wire (Common - Open - Close)
